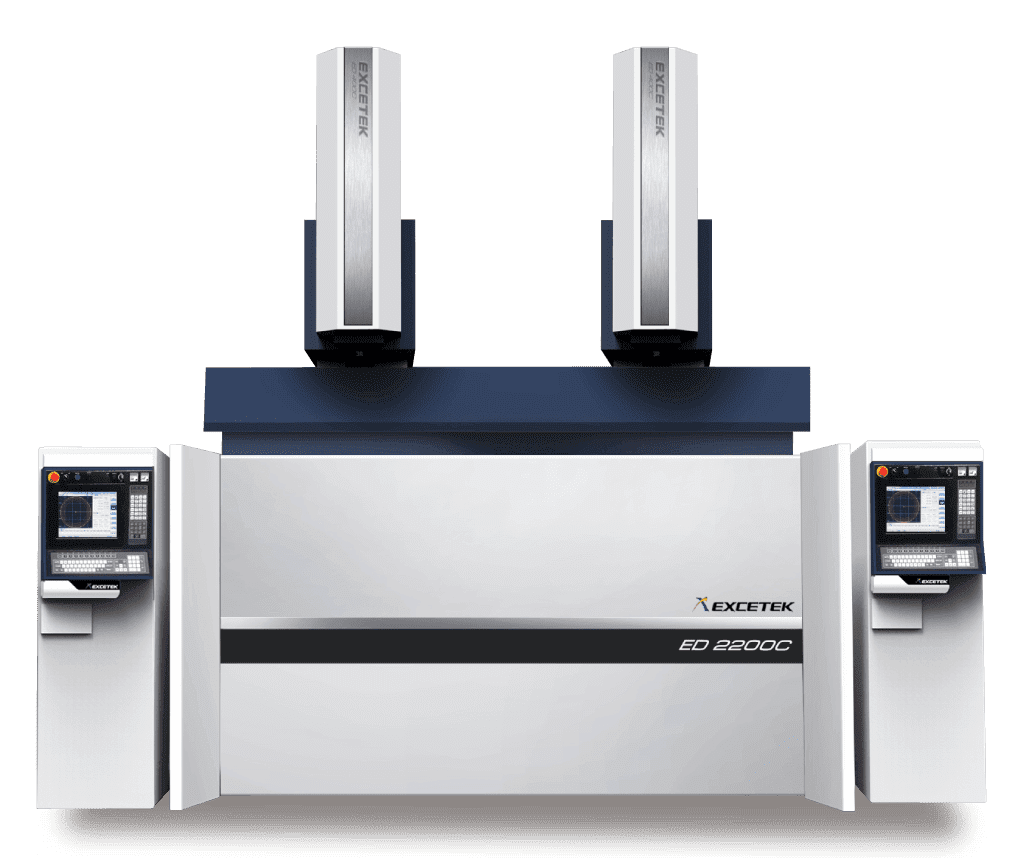

ED2200C-2H

CNC Series
https://www.excetek.com/web/image/product.template/50/image_1920?unique=ba068fd

X/Y Travel : 1550(775) x 1000 mm
Max. work piece weight : 10000 mm
Machine weight : 15000 kgs
Outside Dimensions : 5350 x 4610 x 3960 mm
Electrode Head to Work Table Distance : 760~1360

    This combination does not exist.

    Specification


    ED2200C-2H
    X/Y travel
    1550(775) x 1000 mm
    Max. work piece weight
    10000 mm
    Machine weight
    15000 kgs
    Outside Dimensions
    5350 x 4610 x 3960 mm
    Electrode Head to Work Table Distance
    760 ~ 1360
    Oil filter tank
    Tank capacity
    5000 L
    Tank weight
    1050 kg
    Outside dimensions
    3700 x 1850 x 780 mm

    Features


    Superior Erosion Function

    EXCETEK EDM provide MOSFET sparking circuit where it sustains only less electrode wear and fast erosion speed which can achieve minor erosion with smooth surface roughness.

    Simple Maintenance

    EXCETEK Generator uses front and back assembly module design where the function of circuit indicates clear at each circuit which have fuse protection. This helps more easier for maintenance check and exchange PCB where it also provides user friendly with the customers and service maintenance.

    Stable Generator With Performance

    Front and back have separate double heat flow system which are hot component and cold circuit where it is separated electronic component. Adequately heat sink to improve generator working stable, for nearly zero maintenance.

    Perfect Of After Sale Service Quality

    EXCETEK provide after sales and service maintenance which include Operation, Training, Maintenance and Application. According to vanguard’s professional management technology, we provide service quality and customer satisfaction for after sales service support.

    Accessory


    Standard Accessories
    • Alcohol extinguisher
    • Working Lamp
    • Leveling pad
    • Flushing unit
    • Paper Filter
    • 1/2 Drill chuck
    • Tools Box
    • Clamp jiq
    Options
    • Oil cooling system
    • Permanent magnetic pedestal
    • Tungsten carbide sparking circuit
