Wire-Cutting EDM

NP Series

The generator & CNC Control、Mechanical Structure、Auto Wire Threading、Processing Function、Sample...

AUTO MEASUREMENT SYSTEM

Using automatic measurement system, you can be able to find the inclination measurement, AR correction and reference point. EXCETEK provide a probe to measure the accuracy and auto-calibrate the precision mold before machining which reduce the pre-processing time.

With macro instruction, it automatically measure and correct the reference point to improve the mold processing accuracy. After processing, the accuracy test is performed directly on the workbench, which saves the repeated disassembly time of the workpiece and avoid the processing errors caused by repeated disassembly.

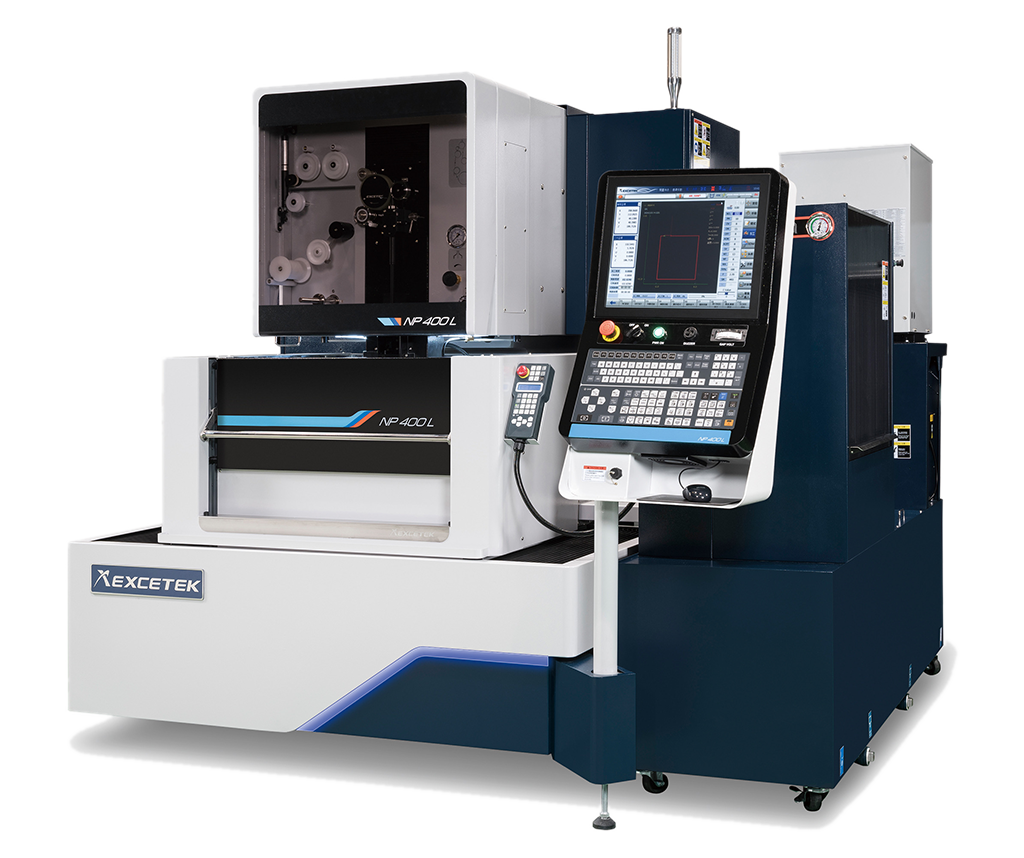

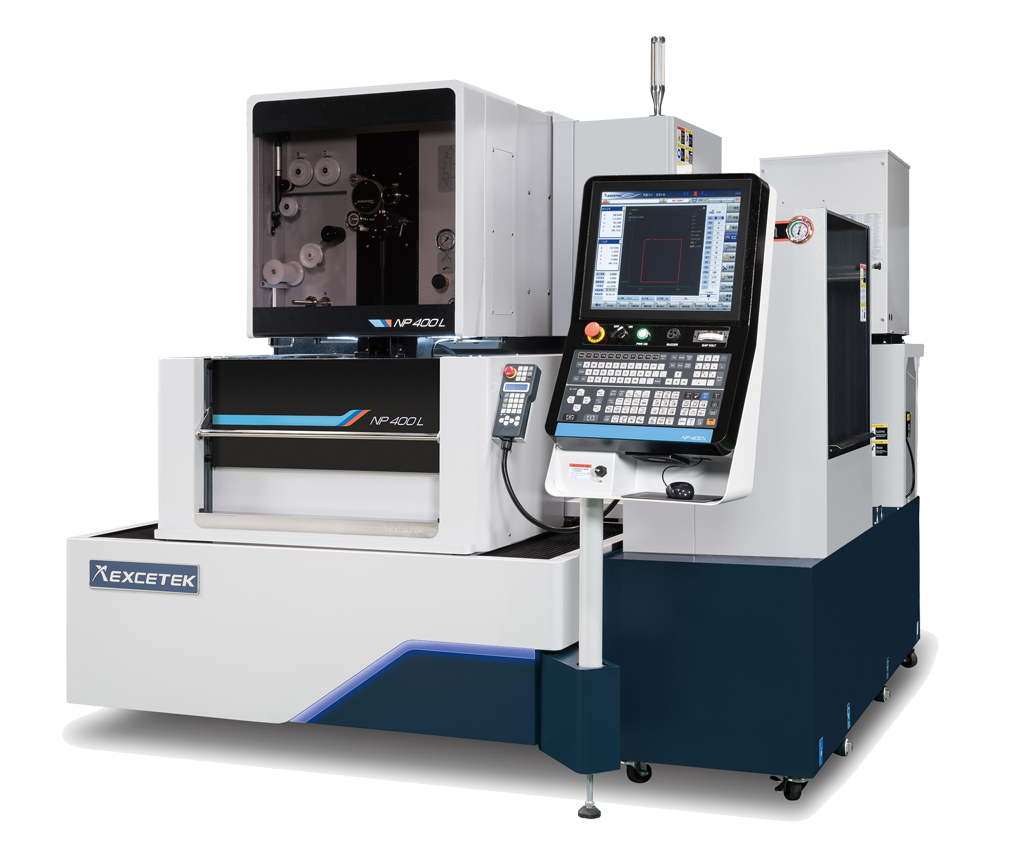

NP400L
NP Series
X/Y axes : 400 x 300 mm
U/V axes : 80 x 80 mm
Z axis : 220 mm

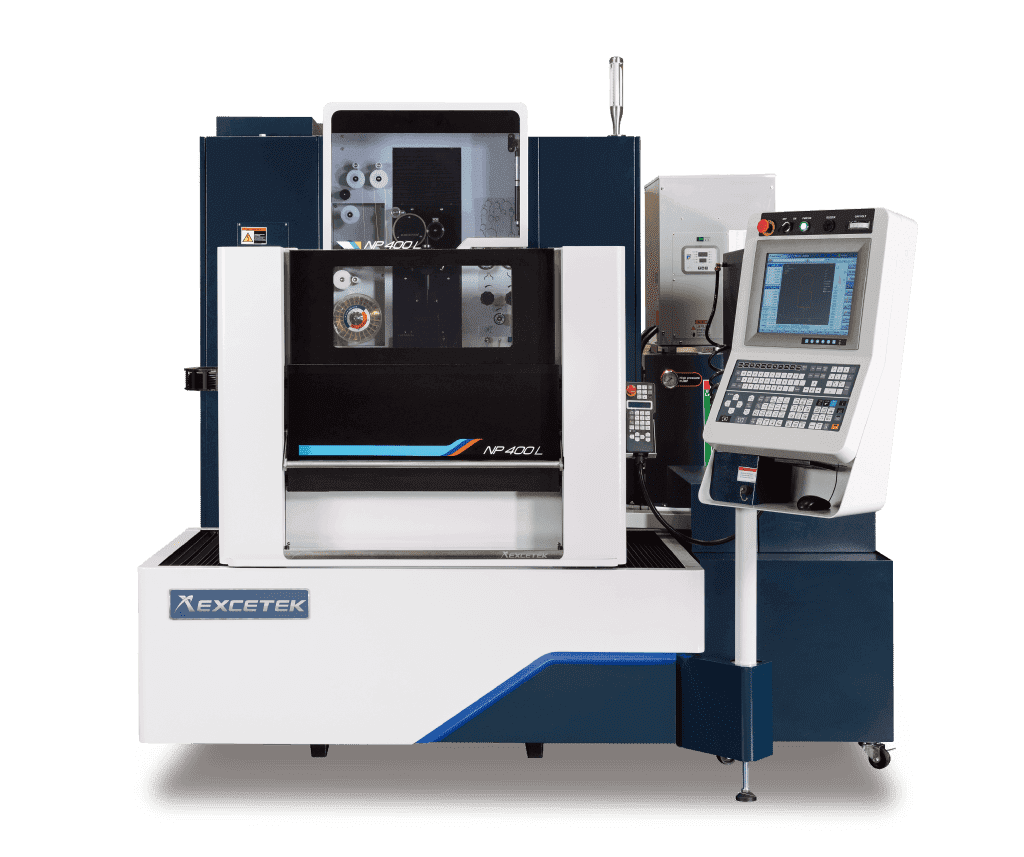

NP400L CE
NP Series
X/Y axes : 400 x 300 mm
U/V axes : 80 x 80 mm
Z axis : 220 mm

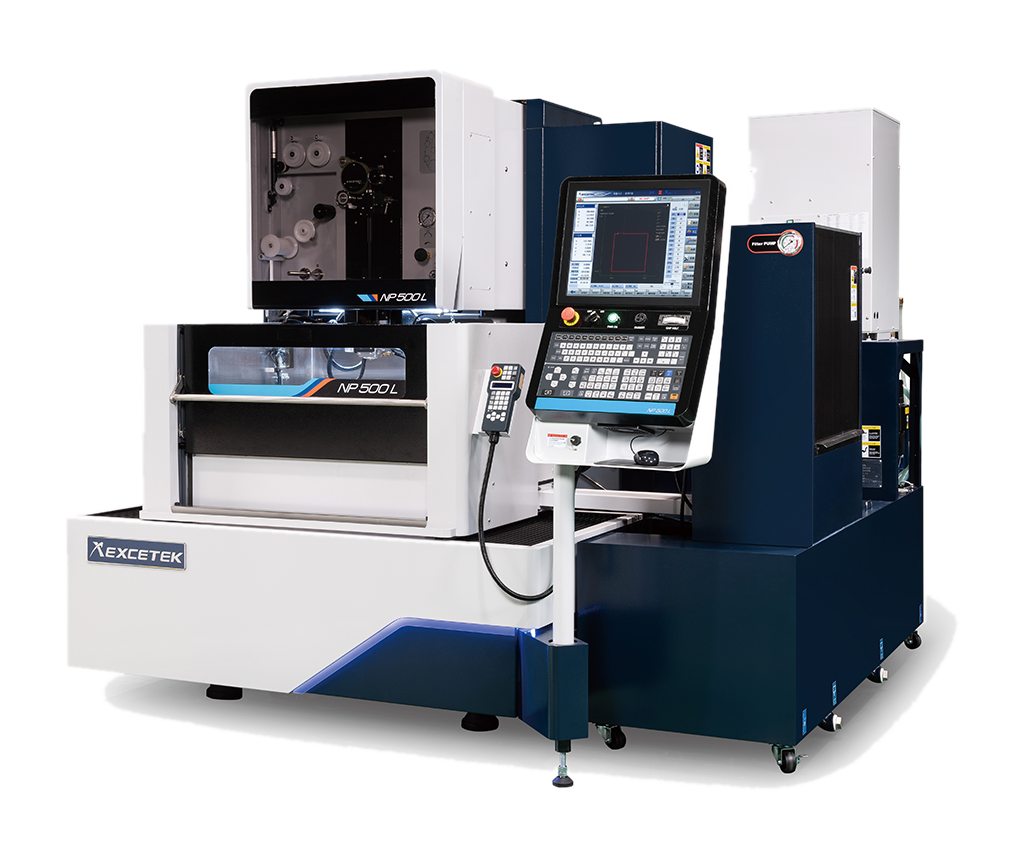

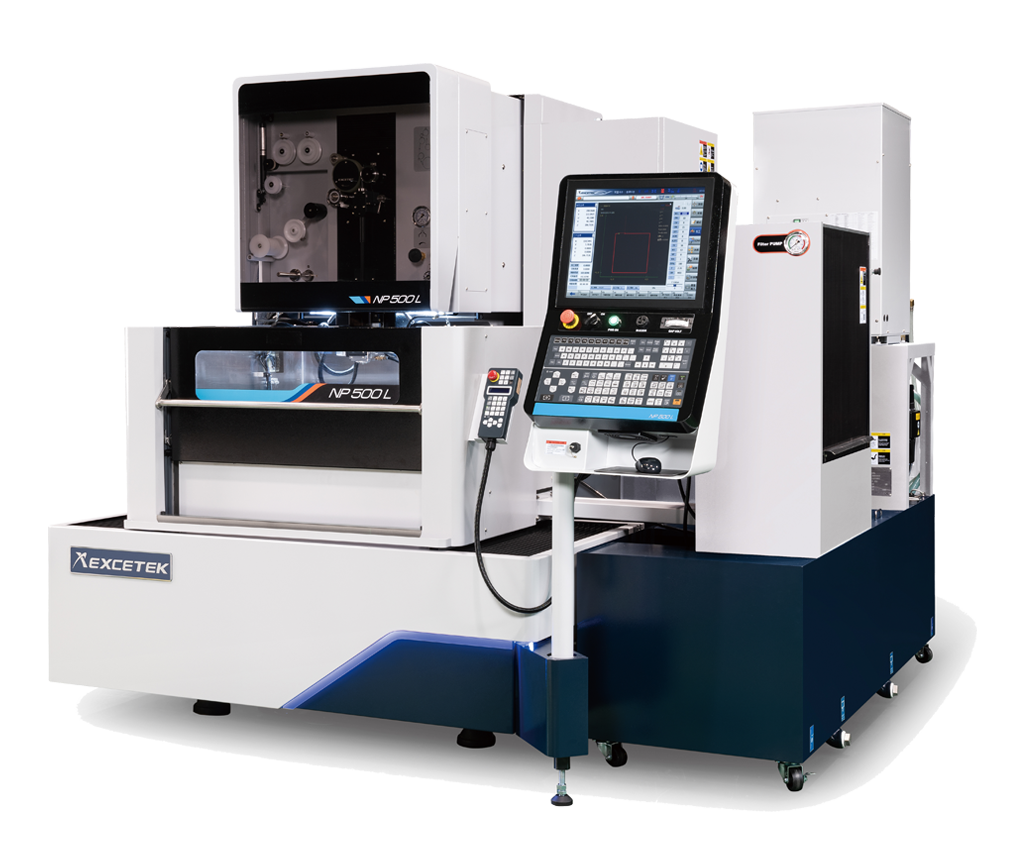

NP500L
NP Series
X/Y axes : 500 x 300 mm
U/V axes : 120 x 120 mm
Z axis : 310 mm

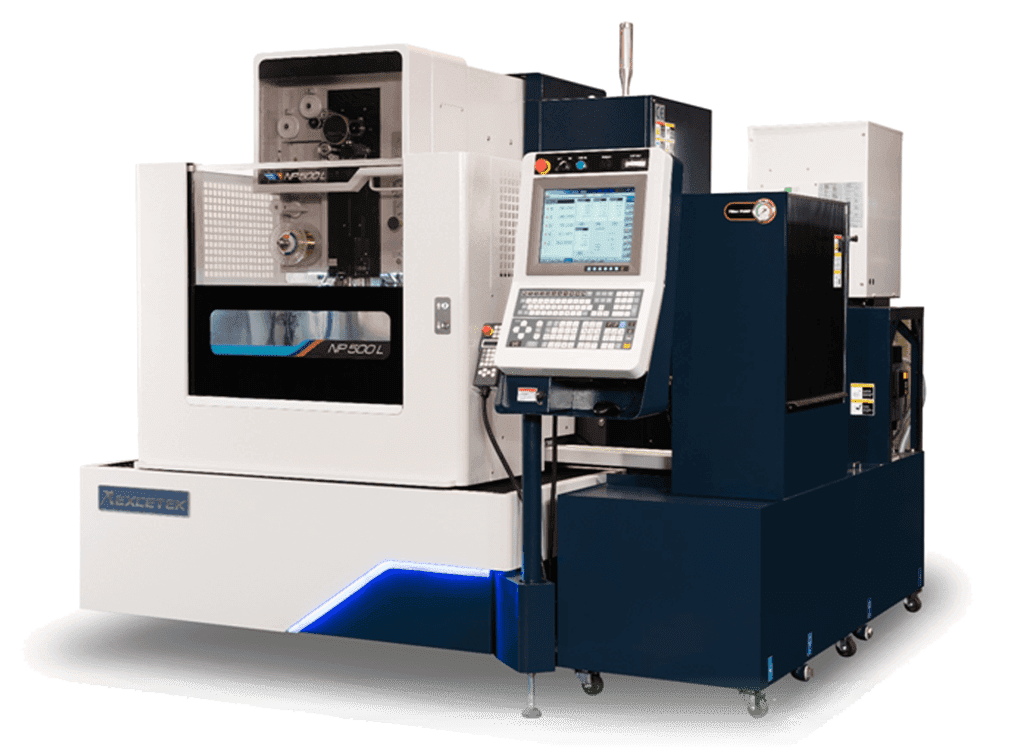

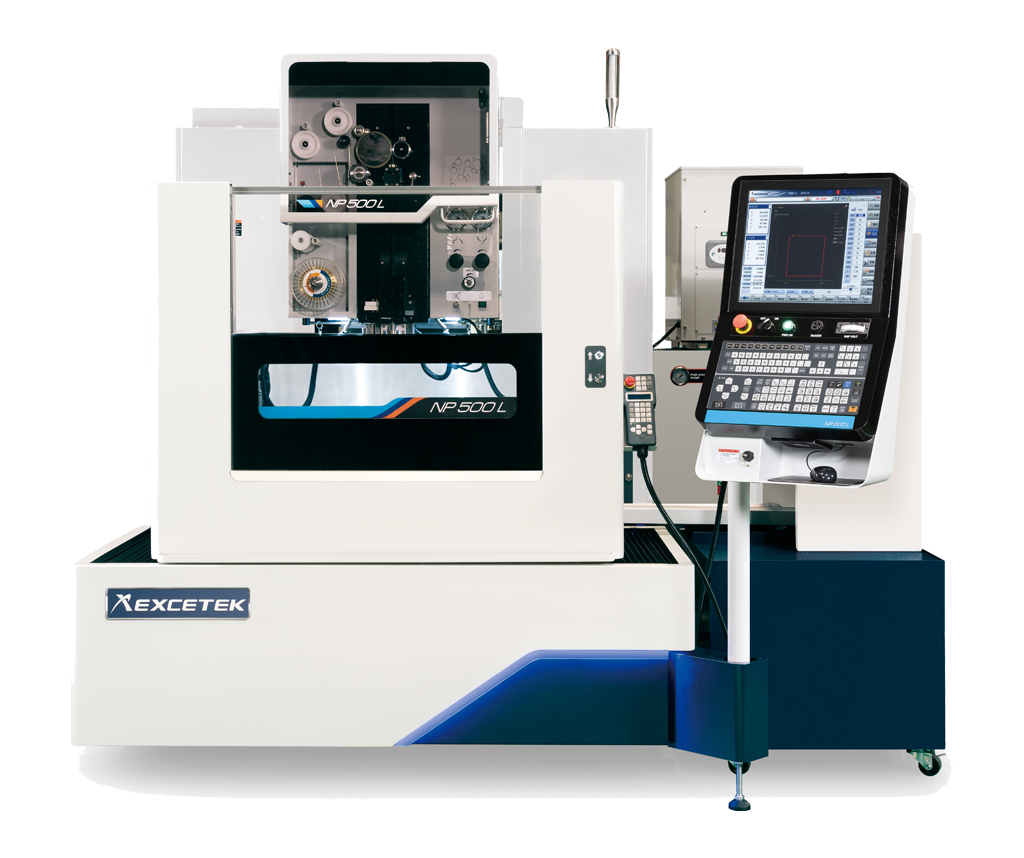

NP500L CE
NP Series
X/Y axes : 500 x 300 mm
U/V axes : 120 x 120 mm
Z axis : 310 mm

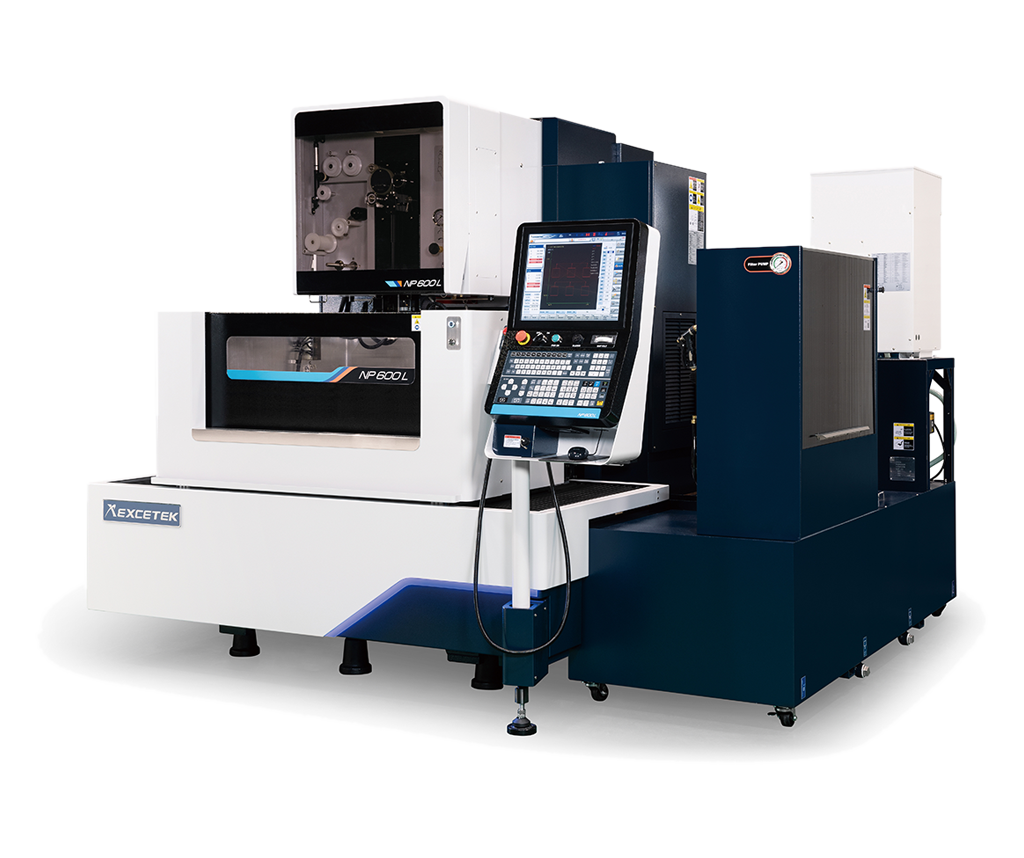

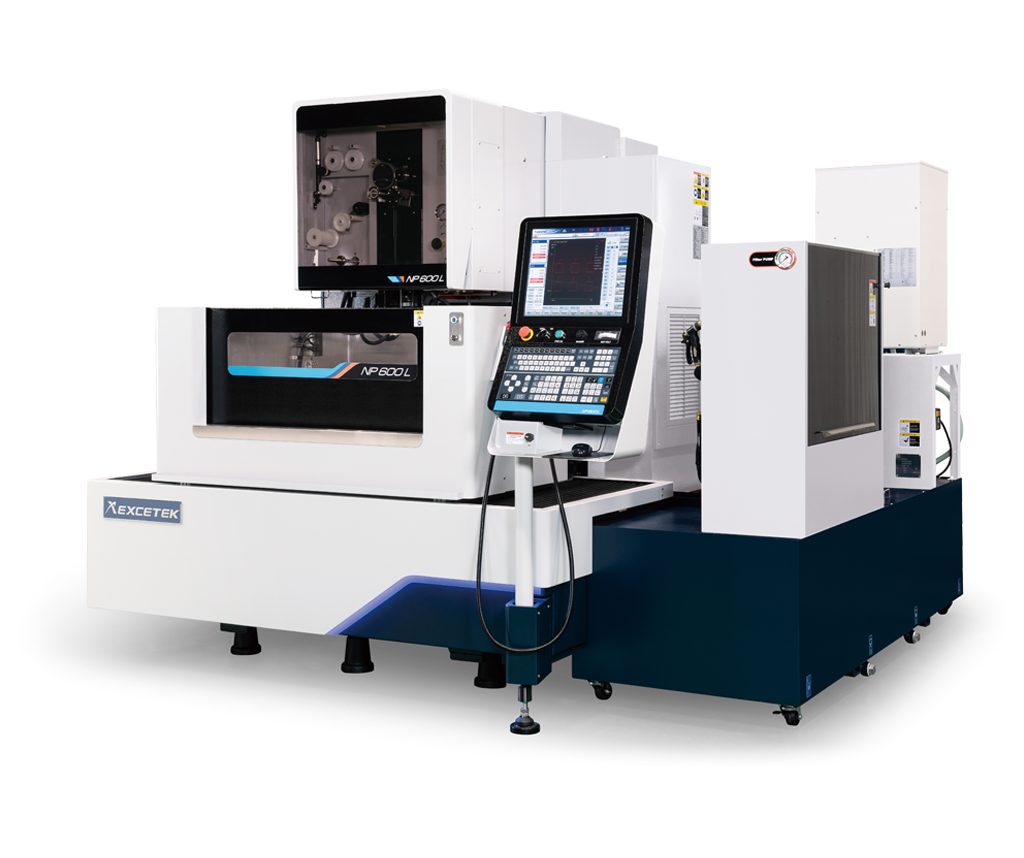

NP600L
NP Series
X/Y axes : 600 x 400 mm
U/V axes : 160 x 160 mm
Z axis : 410 mm(option)

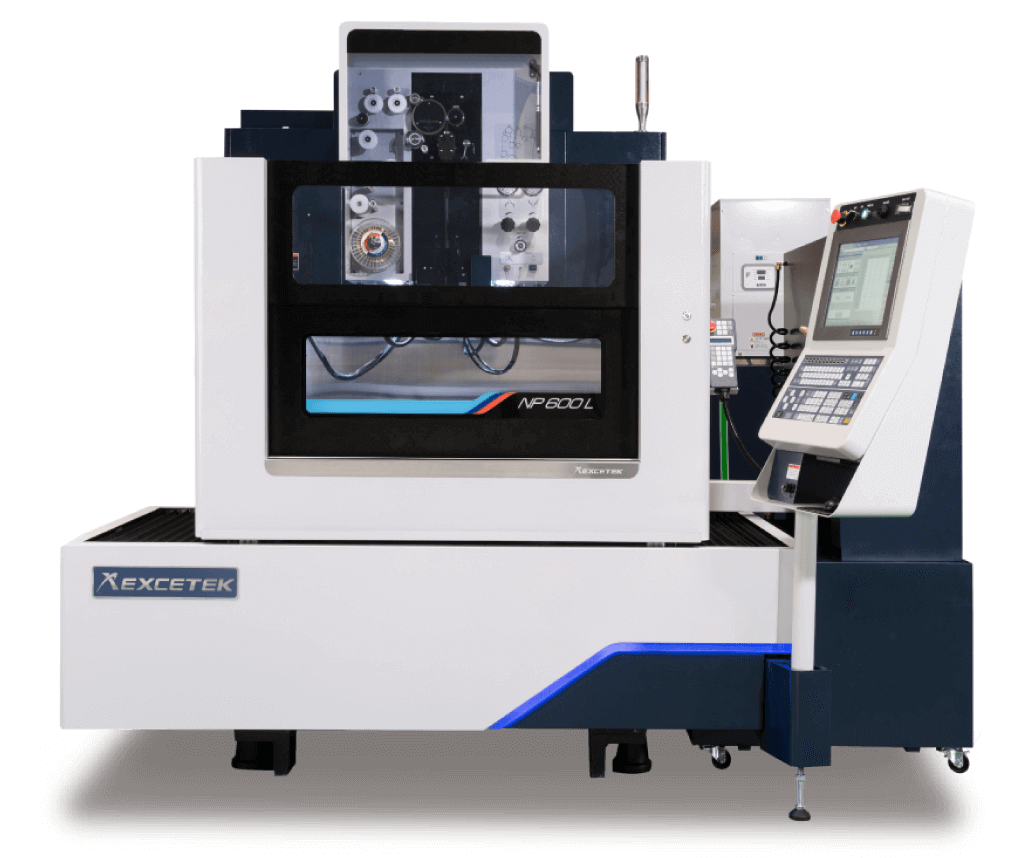

NP600L CE
NP Series
X/Y axes : 600 x 400 mm
U/V axes : 160 x 160 mm
Z axis : 410 mm(option)
