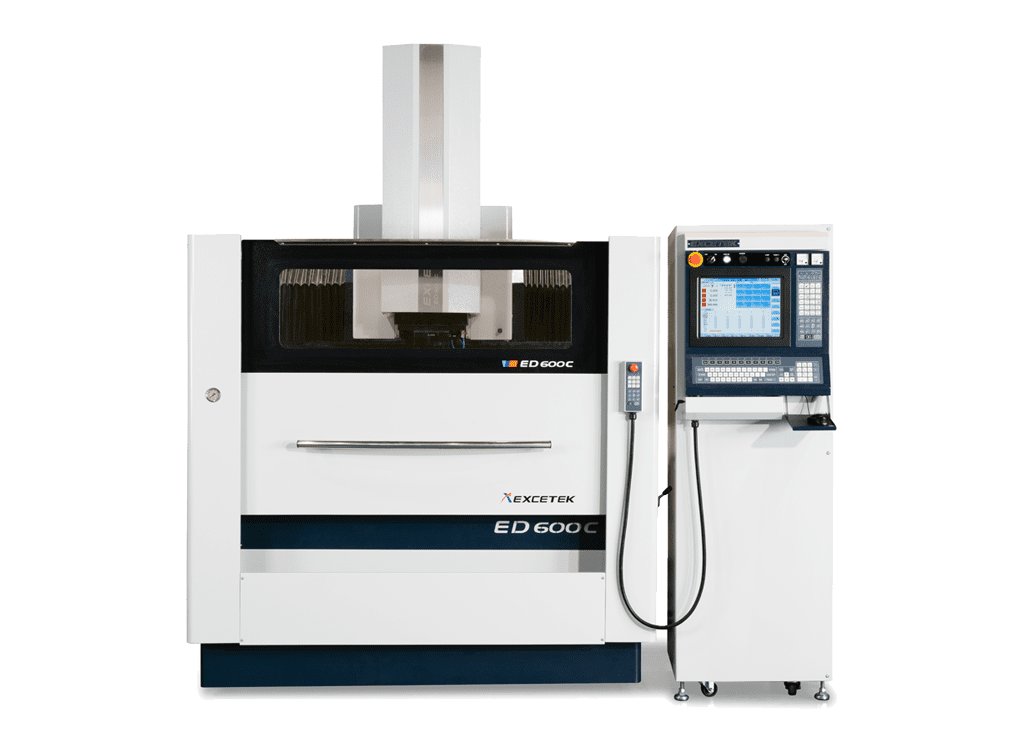

ED600C CE

CNC Series
https://www.excetek.com/web/image/product.template/47/image_1920?unique=5babd7b

X/Y Travel : 650 x 450 mm
Z Travel : 400 mm
Work Table : 1000 x 600 mm
Max. Work piece : 1290 x 700 mm

  • The optimum size EDM it for all most mold.

    This combination does not exist.

    Specification


    ED600C CE
    X/Y travel
    650 x 400 mm
    Z travel
    400 mm
    Work table
    1000 x 600 mm
    Max. work piece size
    1290 x 700 mm
    Max. work piece weight
    300 kg
    Max. electrode weight
    150 kg
    Machine weight
    3900 kg
    Outside Dimensions(Machine body+Travel+Tank+Generator)
    2110 x 2580 x 2575 mm
    Electrode Head to Work Table Distance
    300 ~ 700
    Oil filter tank
    Tank capacity
    1000 L
    Tank weight
    350 kg
    Paper filter
    4 / pcs
    Outside dimensions
    2800 x 2650 x 2666 mm

    Features


    Superior Erosion Function

    EXCETEK EDM provide MOSFET sparking circuit where it sustains only less electrode wear and fast erosion speed which can achieve minor erosion with smooth surface roughness.

    Simple Maintenance

    EXCETEK Generator uses front and back assembly module design where the function of circuit indicates clear at each circuit which have fuse protection. This helps more easier for maintenance check and exchange PCB where it also provides user friendly with the customers and service maintenance.

    Stable Generator With Performance

    Front and back have separate double heat flow system which are hot component and cold circuit where it is separated electronic component. Adequately heat sink to improve generator working stable, for nearly zero maintenance.

    Perfect Of After Sale Service Quality

    EXCETEK provide after sales and service maintenance which include Operation, Training, Maintenance and Application. According to vanguard’s professional management technology, we provide service quality and customer satisfaction for after sales service support.

    Accessory


    Standard Accessories
    • Alcohol extinguisher
    • Working Lamp
    • Leveling pad
    • Flushing unit
    • Paper Filter
    • 1/2 Drill chuck
    • Tools Box
    • Clamp jiq
    Options
    • Oil cooling system
    • Permanent magnetic pedestal
    • Tungsten carbide sparking circuit
