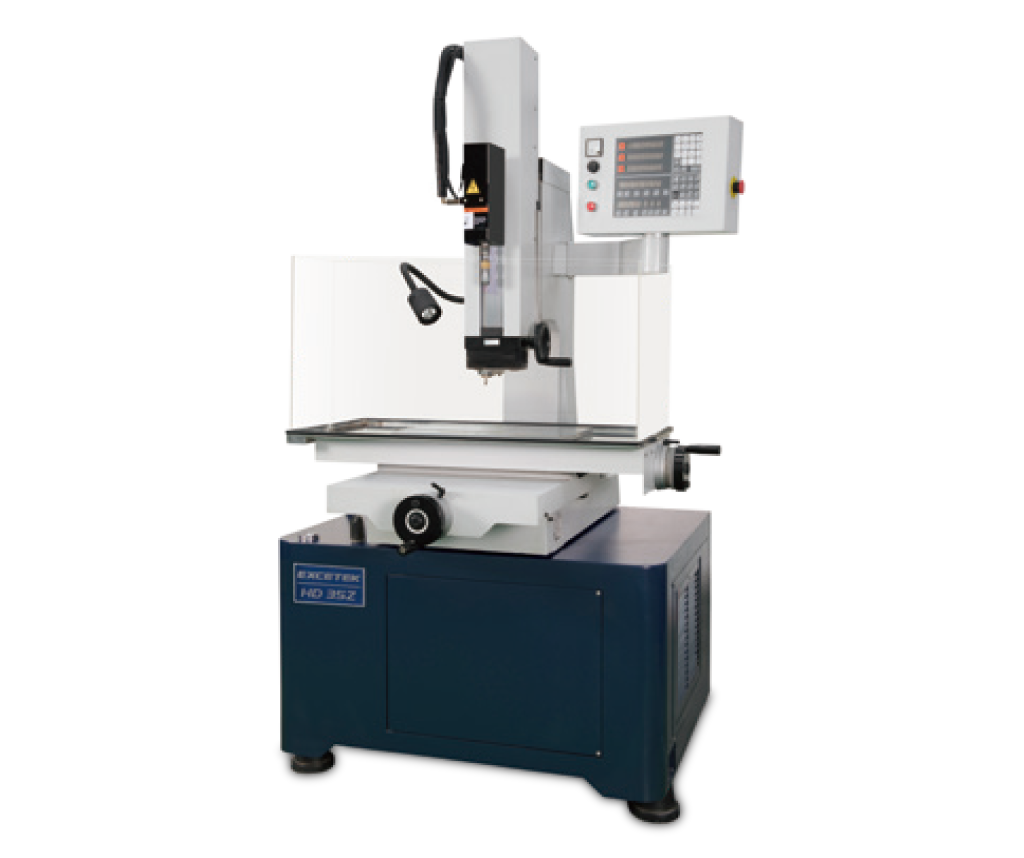

HD35Z

General Purpose
https://www.excetek.com/web/image/product.template/62/image_1920?unique=ebd848f

X/Y axes : 350 x 250 mm
Z axis : 350 mm
W axis Travel + Manual Guide Travel : 200 + 150 mm

    This combination does not exist.

    Specification


    HD35Z
    Work table size (WxD)
    600 x 300 mm
    X/Y axes travel
    350 x 250 mm
    Z axis travel
    350 mm
    W axis Travel + Manual Guide Travel
    200 + 150 mm
    Electrode size
    Ø 0.3 ~ Ø 3.0 mm
    Maxi. electrode length
    400 mm
    Maxi. workpiece size
    810 x 430 x 350 mm
    Maxi. workpiece weight
    350 kg
    Machine weight
    1130 kg
    Max. Machining Current
    48 A
    Input power
    4.0 KVA
    Machine dimension
    1520 x 1287 x 2300 mm

    Features


    Generator Feature
    CNC Controller Feature


    Accessory


    Standard Accessories
    • Electrode Chuck Ø0.3mm~Ø3.0mm x 1
    • Electrode Guide Ø1.0mm x 1
    • Electrode Brass Tube Ø1.0mm x 20pcs
    • Work Lamp x 1
    • 80L Stainless Water Filter Tank
    • Tools Box x 1
    • Paper Filter PW-40-2 300 x 29 x 500mm 10μm x 1pcs
    • Paper Filter PP 10inch 5μm x 1pcs
    • Parallel Pad x 2
    • Water Seal
    Options
    • Electrode Chuck Ø3.1mm~Ø6.0mm
    • CE
    • Finish Stop Device
    • Air Chuck
