Specification

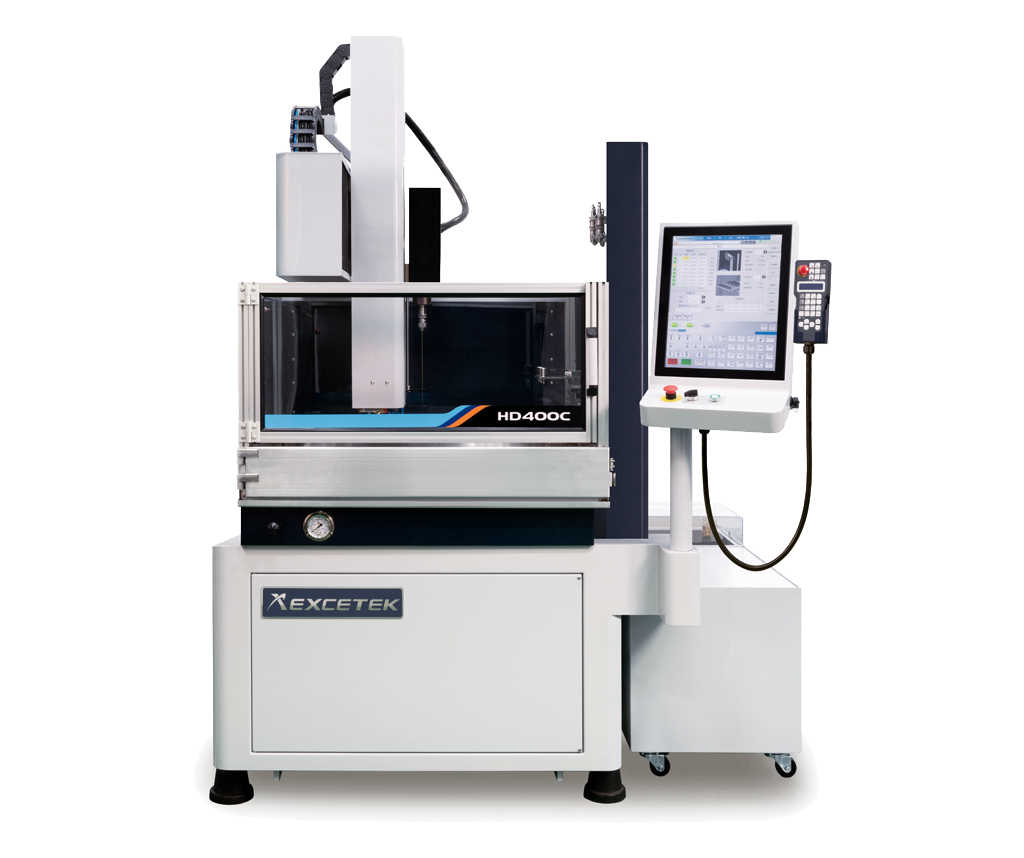

HD400C
Work table size (WxD)
600 x 350 mm
X/Y axes travel
400 x 300 mm
Z axis travel
400 mm
W axis Travel
400 mm
Electrode size
Ø 0.3 ~ Ø 3.0 mm
Auto electrode changer (Option)
8/16 pcs
Maxi. electrode length
400 mm
Maxi. workpiece height
400 mm
Maxi. workpiece weight
500 kg
Machine weight
1630 kg
Input power
4.0 KVA

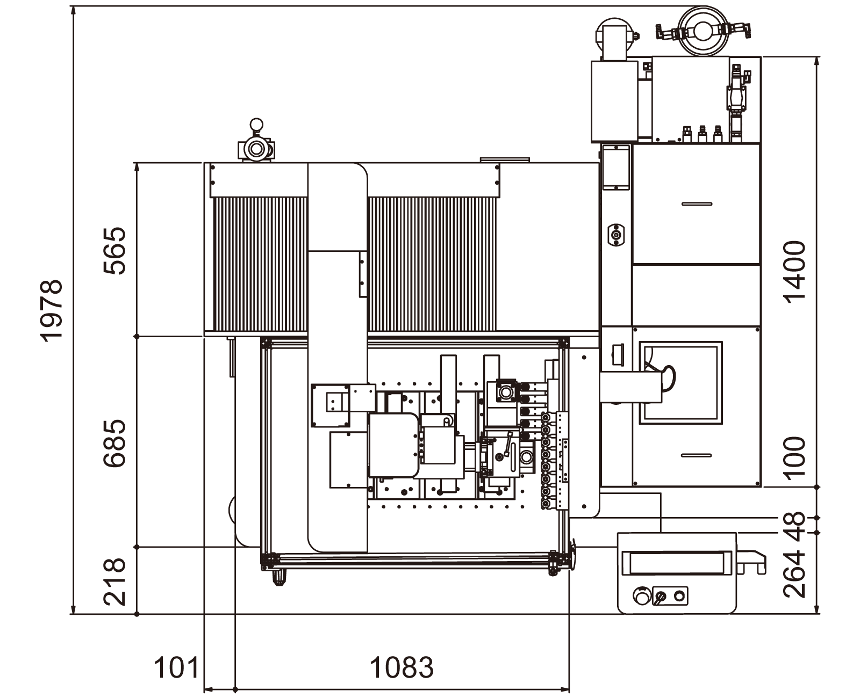

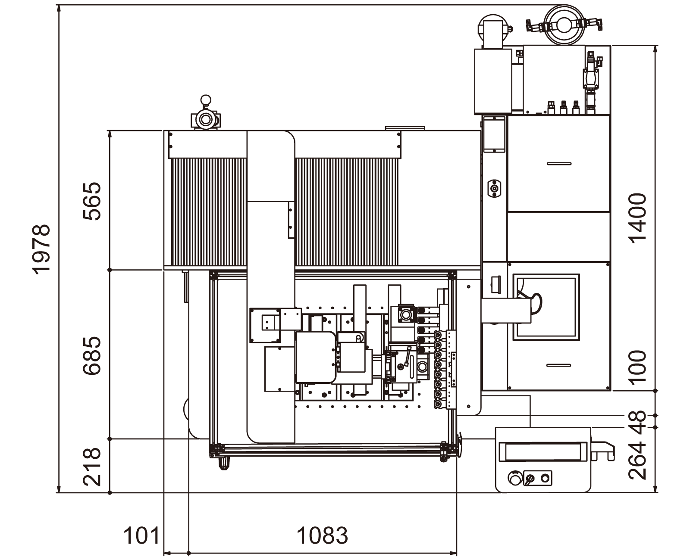

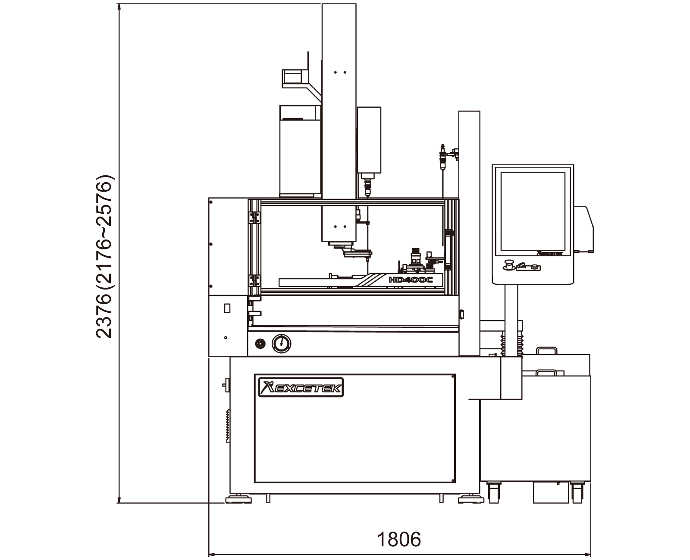

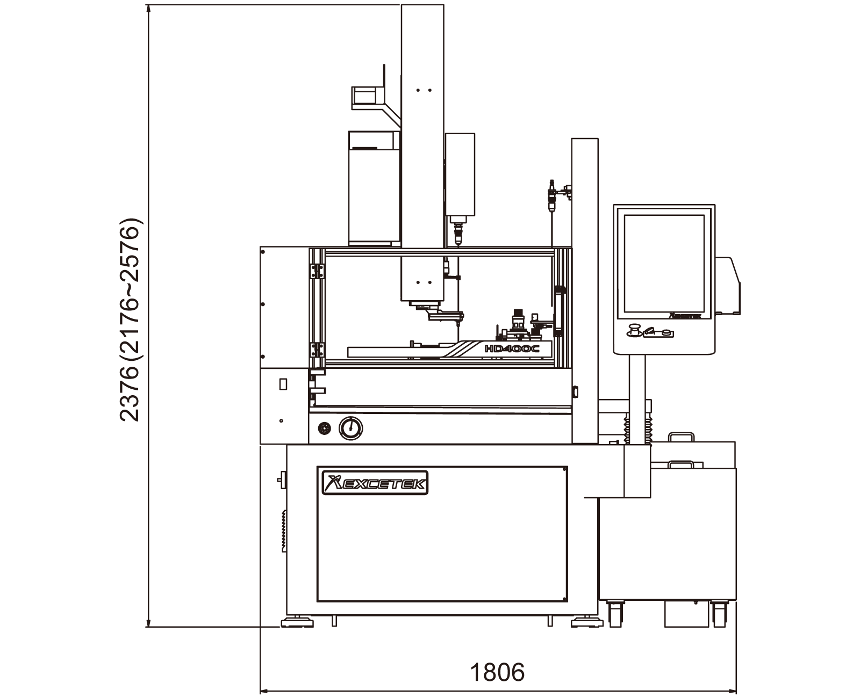

Machine dimension
1900 x 1965 x 2600 mm
Features
The Generator & CNC Control
Easy Operation With Graphic Screen
AEC & AGC Setting
Abundance Cutting technology database
Abundance Database
Machining Monitor
Metrix Editing Selection
Square Metrix
Square-1 Metrix
Circle Metrix
Linear Metrix
Circle Metrix
Circle-1 Metrix
- The HD Series Hole Driller with EXCETEK Motion Controller has an optimised servo control to achieve high speed and precison.
- Input Interface: LAN, USB
- Easy setting and comprehensive EDM cutting technology database.
- Iot and Automation Solution For Smart Factory
Touch Screen and Friendly Operation Interface
Easy Operation With Graphic Screen
AEC & AGC Setting
Abundance Cutting technology database
Abundance Database
Machining Monitor
Metrix Editing Selection
Dialogue Metrix Edit System
Square Metrix
Square-1 Metrix
Circle Metrix
Linear Metrix
Circle Metrix
Circle-1 Metrix
Mechanical Structure
- 8 AEC - Linear electrode changer (Option)
- 16 AEC - Rotary electrode changer (Option)
- 5 AGC-Automatic Guide Changer (Option)
- A/B Rotary Tablet (Option)
Accessory
Standard Accessories
Electrode Chuck Ø0.3mm~Ø3.0mm x 1
Electrode Guide Ø1.0mm x 1
Electrode Pipe Brass Ø1.0mm x 20pcs
Tools Box x 1
Paper Filter PW-40-2 300 x 29 x 500mm 10μm x 1pcs
Paper Filter PP 10inch 5μm x 1pcs
Parallel Pad x 2
Water Seal x 20pcs
- Air Chuck
Options
A/B Rotary Tablet
Auto Electrode Changer System
Auto Electrode Chuck Ø3.1~Ø6.0
- XY Linear Scale With 1μm Resolution
Auto Giude Changer System
Water Cooler
Ion Exchange System
CE
IOT And Automation Solution For Smart Factory
DXF File, Wire Cut NC File Conversion
Stainless Semi-submerged Work Tank
Finish Stop Device
Max. Machining Current 75A
