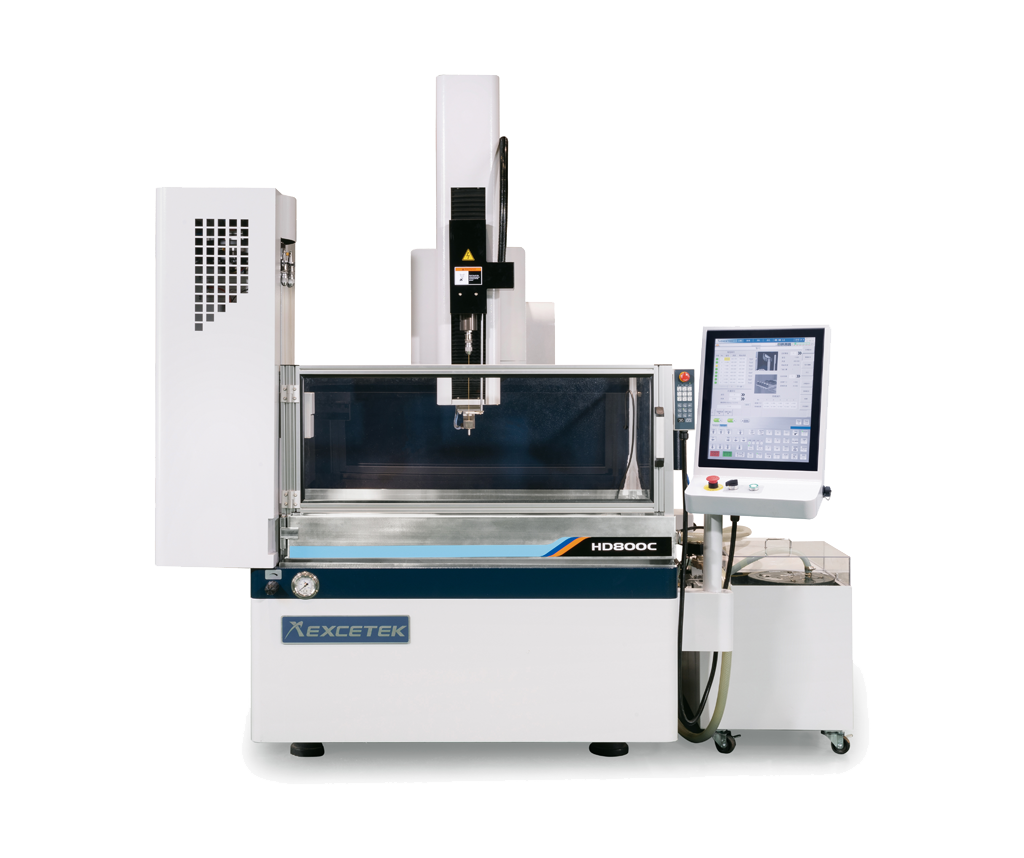

HD800C

CNC Series
https://www.excetek.com/web/image/product.template/66/image_1920?unique=c142bc2

X/Y axes : 800 x 600 mm
Z axis : 400 mm (Option 600 mm)
W axis : 400 mm (Option 600 mm)

    This combination does not exist.

    Specification


    HD800C
    Work table size (WxD)
    900 x 600 mm
    X/Y axes travel
    800 x 600 mm
    Z axis travel
    400 mm (Option 600 mm)
    W axis Travel
    400 mm (Option 600 mm)
    Electrode size
    Ø 0.3 ~ Ø 3.0 mm
    Auto electrode changer (Option)
    8/16 pcs
    Maxi. electrode length
    400 mm (Option 600 mm)
    Maxi. workpiece height
    400 mm (Option 600 mm)
    Maxi. workpiece weight
    1500 kg
    Machine weight
    3200 kg
    Input power
    4.0 KVA
    Machine dimension
    2505 x 2500 x 2600 mm
    2505 x 2500 x 3000 mm (without water tank)(Option 600)



    Features


    • The HD Series Hole Driller with EXCETEK Motion Controller has an optimised servo control to achieve high speed and precison.
    • Input Interface: LAN, USB
    • Easy setting and comprehensive EDM cutting technology database.
    • Iot and Automation Solution For Smart Factory
    Touch Screen and Friendly Operation Interface



    Easy Operation With Graphic Screen


    AEC & AGC Setting


    Abundance Cutting technology database


    Abundance Database


     Machining Monitor


    Metrix Editing Selection



    Dialogue Metrix Edit System



    Square Metrix


     Square-1 Metrix


    Circle Metrix


    Linear Metrix


    Circle Metrix


     Circle-1 Metrix

    • 8 AEC - Linear electrode changer (Option)

    • 16 AEC - Rotary electrode changer (Option)

    • 5 AGC-Automatic Guide Changer (Option)

    • A/B Rotary Tablet (Option)

    Accessory


    Standard Accessories
    • Electrode Chuck Ø0.3mm~Ø3.0mm x 1
    • Electrode Guide Ø1.0mm x 1
    • Electrode Pipe Brass Ø1.0mm x 20pcs
    • Tools Box x 1
    • Paper Filter PW-40-2 300 x 29 x 500mm 10μm x 1pcs
    • Paper Filter PP 10inch 5μm x 1pcs
    • Parallel Pad x 2
    • Water Seal x 20pcs
    • Air Chuck
    Options
    • A/B Rotary Tablet
    • Auto Electrode Changer System
    • Auto Electrode Chuck Ø3.1~Ø6.0
    • XY Linear Scale With 1μm Resolution
    • Auto Giude Changer System
    • Water Cooler
    • Ion Exchange System
    • CE
    • IOT And Automation Solution For Smart Factory
    • DXF File, Wire Cut NC File Conversion
    • Stainless Semi-submerged Work Tank
    • Finish Stop Device
    • Max. Machining Current 75A
