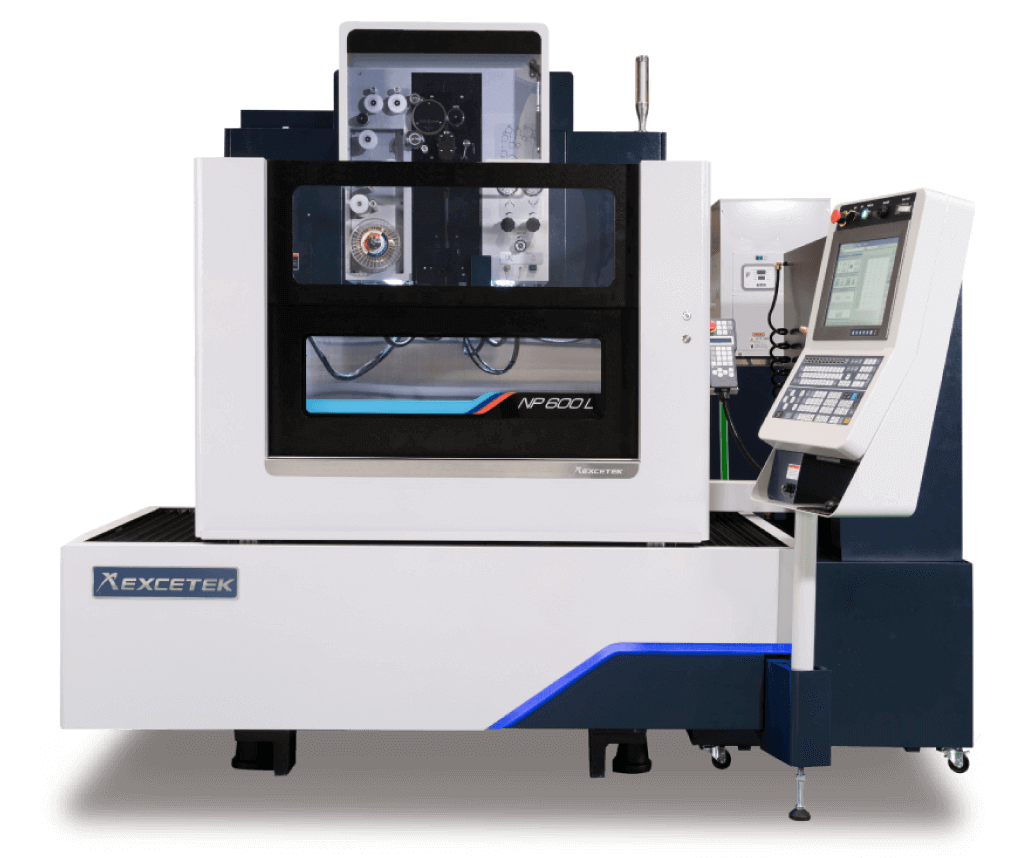

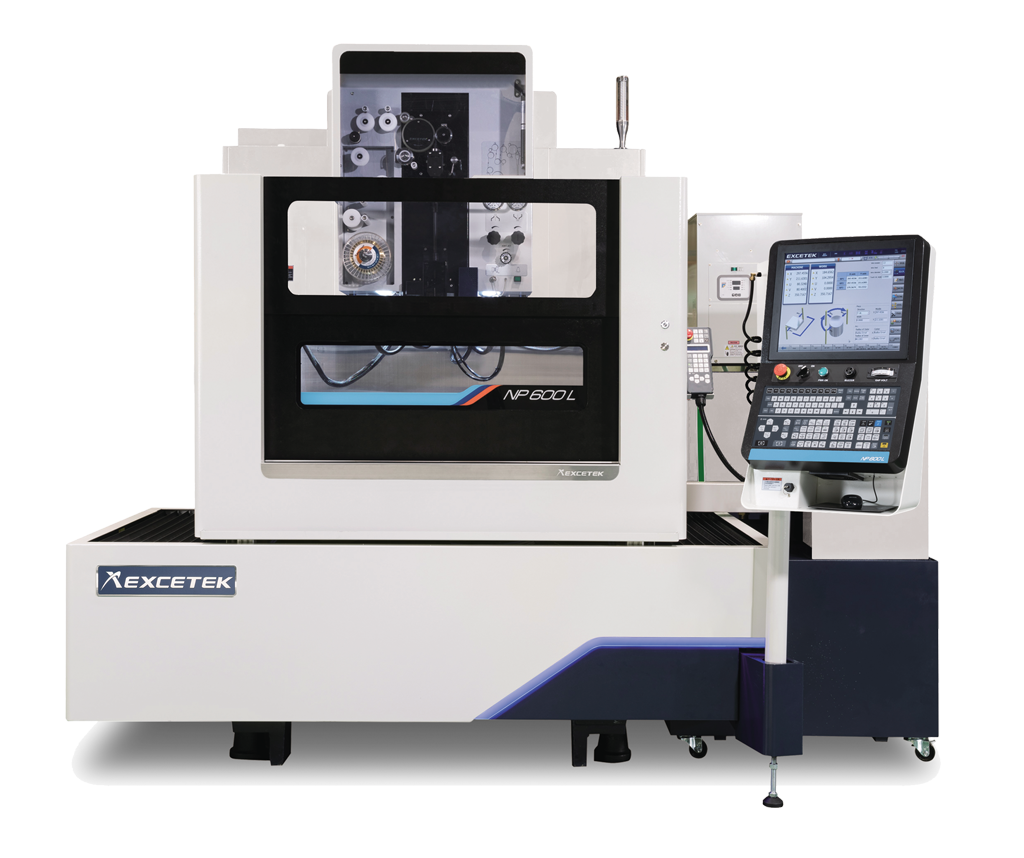

NP600L CE

NP Series
https://www.excetek.com/web/image/product.template/37/image_1920?unique=9bfb41a

X/Y axes : 600 x 400 mm
U/V axes : 160 x 160 mm
Z axis : 410 mm(option)

  • Comply with TUV CE comformity, both safety and desired design with easy operation.
  • Power slider door design to save installation space and light operation.

    This combination does not exist.

    Specification


    NP600L CE (Submerged Type)
    Max. work piece size
    1000 x 700 x 345 mm
    Wire diameter
    0.15 - 0.3 mm
    Max. work piece weight
    800 kg
    Number of axes controlled
    XY axis linear motor, UV Z axis AC servo motor
    Table travel of X Y
    600 x 400 mm
    Maximum taper angle
    ±30°/ 100mm with wide diamond guide and nozzle
    U & V axis travel
    160 x 160 mm

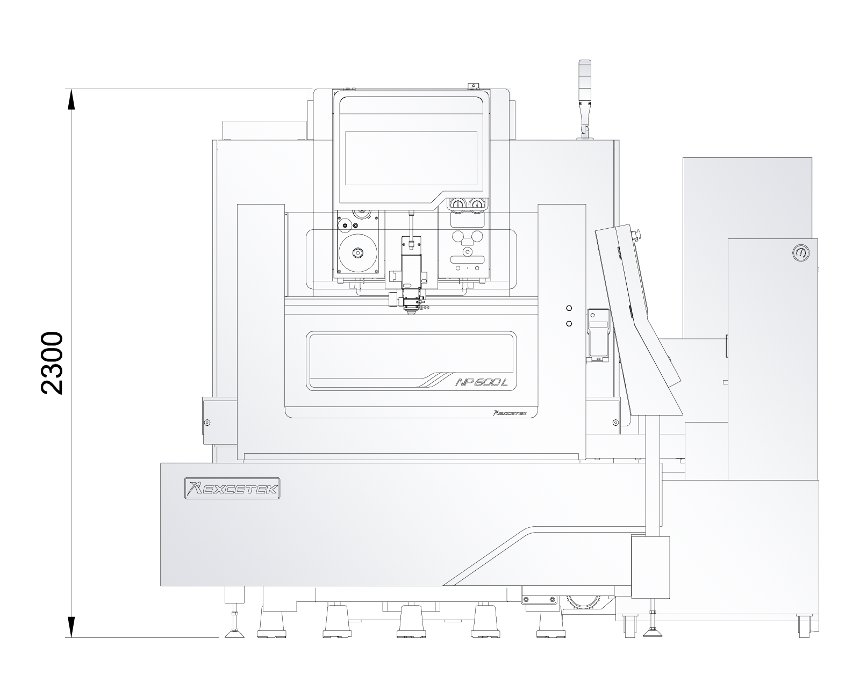

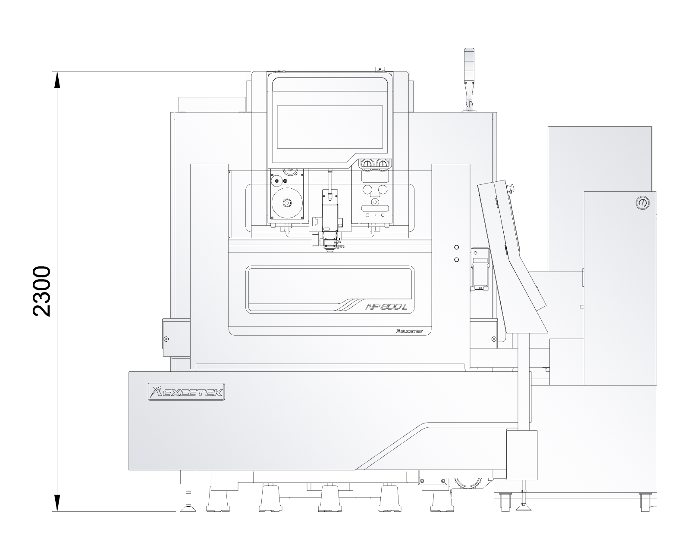

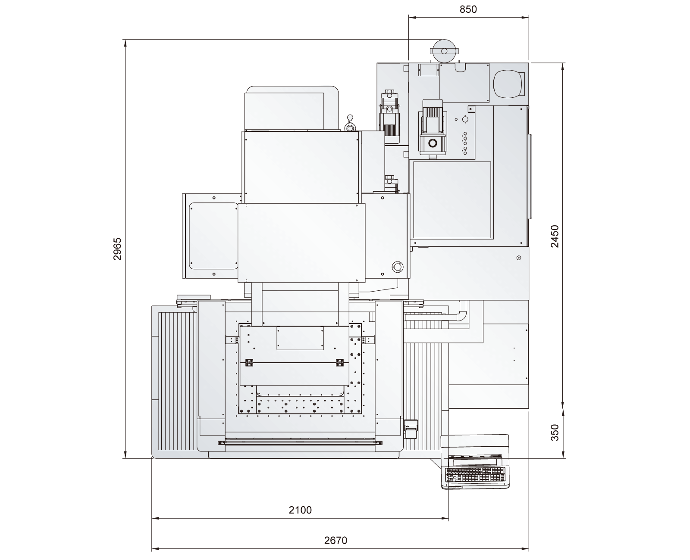

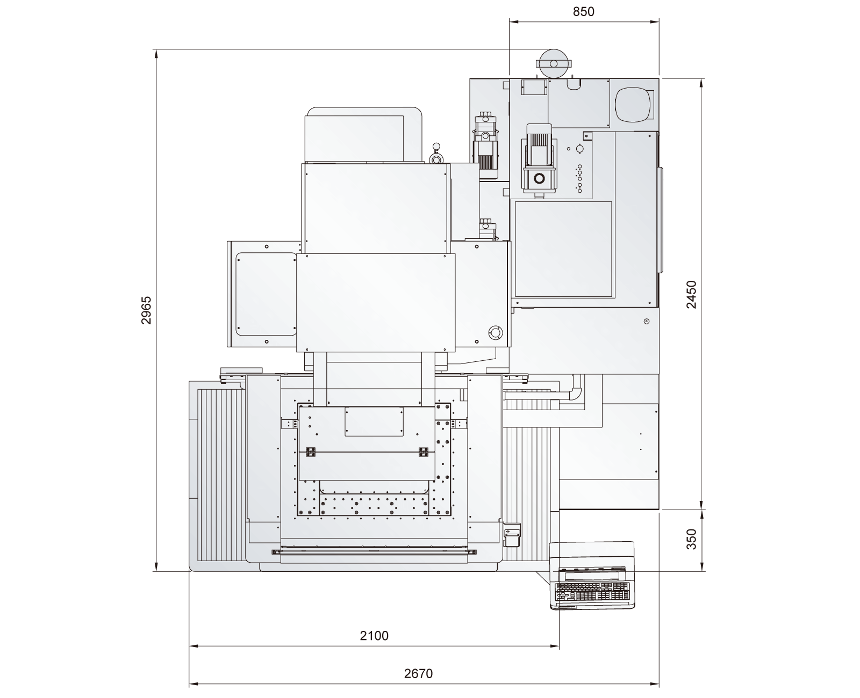

    Machine dimensions
    2670 x 2965 x 2300 mm
    Z axis travel
    410 mm (option)
    Machine weight
    4700 kg
    Dielectric Tank
    Tank capacity
    900 L
    Deionzer
    auto
    Paper filter
    2 / pcs
    Chiller unit
    auto



    Features



    High Precision
    • Smart Corner Control, Stable Discharge processing, Super Finish Circuit (SFC) provide more accuracy.
    Efficiency
    • DPM module, Precision mark control, Electrolysis Free(EF) generator system.
    Cost effective
    • Intelligent access control, Reduce Wire Consumption, Economic concerned price.
    Intelligent Networking
    • Remote monitor management, Controller connector, Portable device monitor.
    Automation
    • High speed Auto Wire Threading, Robo-arm transfer of Workpiece, Probe Auto Measurement and Correction



    Machine feature

    1. Rigid U, V truss design
    2. Stainless steel worktable with hardness HRC 50°.
    3. Machine Casting is designed based on the FEA analysis for increasing the rigidity.
    4. Machine base with extra wide.

    Linear Sheft Motor Driver System

    MechanicalStructure

    The machine provides the constant temperature for improving the accuracy while machining where the heat generated by the linear motor will affect the accuracy. The water circulation reduces the temperature generated by the linear electric motor from the magnetic field, with high thrust, high efficiency and low energy consumption.

    Features such as a 0.1 μm high-resolution digital ruler and controller provide high-precision forming and ultra-fine finishing.


    1. Coil
    2. Magent
    3. Shaft
    4. Coil
    5. Magnetic flux

    Improved Operability



    4-side Hardened Stainless Steel Table

    • It has certified the standards of TUV Certification for safety and metal desired design.
    • Power slider door design to save installation space and light operation
    Intelligent machining mode

    Graphical Interface

    The HMI panel is easy to operate, using class leading ergonomic technology


    Intelligent Machining mode


    Workpiece postioning function


    Maintenance and Diagnosis information


    Technology data search function


    Graphical interface


    Useful function

    Auto Wire Threading


    200mm Submerge threading


    200mm Submerge threading


    400mm thickness threading in break point


    High Speed Auto Wire Threading System

     Workpiece thickness 100mm
    • Wire annealing and cutting : 10 sec
    • Threading : 10 sec

    Reliable Auto Wire Threading system

    In EXCETEK, AWT provides a sophisticated design which generates continuous unmanned operation for 24 hours. Unlike other systems it can thread from the point of the wire breakage or break point.

    A water jet function enables the machine to thread workpieces up to 500mm.


    On-line measurement system

    CBefore the machining, on-line measurement and calibration instead of the conventional one, significantly reduce the time to calibrate the workpiece. With the macro command the automatic measurement calibrates the reference point; enhance the machining accuracy. After machining, directly on-line measure the workpiece on the table; avoid the unexpected error from dismount/mount the workpiece.




    Multi-workpiece machining
    • Automatic compensating the 3D flatness of workpiece.
    • Automatic compensating the parallelism of workpiece (AR)
    • Automatic machining reference point measurement.
    • Processing AWT automatic wire threading
    • Go to the next workpiece to continue processing.


    Processing automation
    • Automatic compensating the parallelism of workpiece (AR)
    • Automatically calibrate the reference point
    • Processing AWT automatic wire threading
    • Automatically measure the results after machining
    • Export the measurement report

    Automatic Measurement Application









    Cutting Technology



    Type
    Without control
    Using control
    A
    0
    0
    B
    0 ~ -2 µm
    -8 ~ -10 µm
    C
    0
    0
    D
    0 ~ -2 µm
    -8 ~ -10 µm

    Using automatic measurement system, you can be able to find the inclination measurement, AR correction and reference point. EXCETEK provide a probe to measure the accuracy and auto-calibrate the precision mold before machining which reduce the pre-processing time.

    With macro instruction, it automatically measure and correct the reference point to improve the mold processing accuracy. After processing, the accuracy test is performed directly on the workbench, which saves the repeated disassembly time of the workpiece and avoid the processing errors caused by repeated disassembly.

    • Compensating the 3D flatness of workpiece automatically.
    • Compensating the Axis rotation of workpiece (AR) automatically.
    • Measuring the processing reference point Automatically.
    • It processes auto wire threading (AWT).
    • It automatically processes to next workpiece after completion of the working.

    Accessory


    Standard Accessories
    • XY axis linear scale
    • Brass wire x 1 spool
    • AWT
    • Clamping tool x 1 set
    • Ion exchange resin x 10L
    • Vertical alignment jig x 1 set
    • Paper filter x 2 pcs
    • Diamond guide x 2 pcs
    • Upper and lower flushing nozzle x 2 sets
    • Energizing plates x 2 pcs
    Options
    • Clamping Beam
    • W-Axis
    • AVR 15KVA
    • Jumbo Feeder L-50A
    • Transformer 15KVA
    • Auto Front Door (Only NP600L)
    • Short Message Service (SMS)
    • Signal Tower
    • Remote Monitor System
    • Auto measurement system
    • Super Finish Circuit
